- R1200-F Series - Large Sump Roof Drains with Parabolic Flow Control Weir
)
Product Description

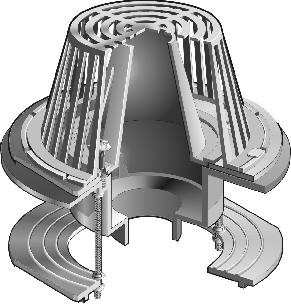

SPECIFICATION: MIFAB Series R1200-F lacquered cast iron deep sump roof drain with anchor flange, large cast iron water proofing membrane clamp ring with integral gravel stop, accuflow parabolic weir (specify -F1, -F2, -F3 for one, two or three slots) and standard self-locking polydome strainer, with a free area of 125 square inches.
FUNCTION: Used to control the flow of rain water off of the roof. Slotted weirs reduce the volume of water to the leader. Specify -F1, -F2 or -F3 for one, two or three slots to attain the required limitation of volume. Flow performance per weir is 10 GPM per inch of water per slot.
FUNCTION: Used to control the flow of rain water off of the roof. Slotted weirs reduce the volume of water to the leader. Specify -F1, -F2 or -F3 for one, two or three slots to attain the required limitation of volume. Flow performance per weir is 10 GPM per inch of water per slot.
Download Technical Data / Submittal Sheet (R1200-F)
