R1200-G Series - Large Sump Roof Drains with Ballast Guard for I.R.M.A. Roofs - Outlet Size 8"
Call for Pricing
![Pin It](http://pinterest.com/pin/create/button/?url=https://maxsupply.com/r1200-g-series-large-sump-roof-drains-with-ballast-guard-for-i-r-m-a-roofs-outlet-size-8/&media=https://cdn10.bigcommerce.com/s-dh5771/products/3443/images/6304/R1200_G__32046__21492.1429635945.1280.1280.jpg?c=2&description=Max Supply - R1200-G Series - Large Sump Roof Drains with Ballast Guard for I.R.M.A. Roofs - Outlet Size 8", Call for Pricing (https://maxsupply.com/r1200-g-series-large-sump-roof-drains-with-ballast-guard-for-i-r-m-a-roofs-outlet-size-8/))
Product Description

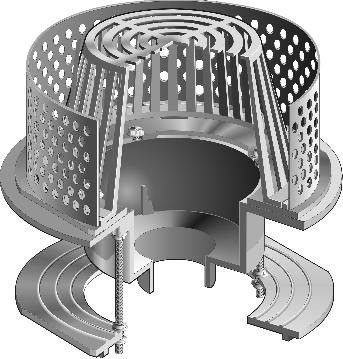

SPECIFICATION: MIFAB Series R1200-G lacquered cast iron deep sump roof drain with 15" diameter anchor flange, large cast iron waterproofing membrane clamp ring with integral gravel stop, 6" (152) high stainless steel perforated ballast guard with 1/2" (13) round drainage openings and standard self-locking polyethylene dome strainer with a free area of 125 square inches.
FUNCTION: For roofs that use the insulated membrane assembly method of waterproofing (I.R.M.A.). Typical when built-up felt and asphalt waterproofing is installed on top of the roof membrane for protection against the elements. The 6" high perforated stainless steel ballast guard is furnished to retain the crushed gravel used in flat roof construction. The 1/2" diameter holes allow for drainage without clogging. Large free area dome provides for efficient drainage of rain water and prevents debris from entering the drain line. Extra wide anchor flange and membrane clamp with tongue in groove design provides for secure grip of membrane and roof flashing materials.
FUNCTION: For roofs that use the insulated membrane assembly method of waterproofing (I.R.M.A.). Typical when built-up felt and asphalt waterproofing is installed on top of the roof membrane for protection against the elements. The 6" high perforated stainless steel ballast guard is furnished to retain the crushed gravel used in flat roof construction. The 1/2" diameter holes allow for drainage without clogging. Large free area dome provides for efficient drainage of rain water and prevents debris from entering the drain line. Extra wide anchor flange and membrane clamp with tongue in groove design provides for secure grip of membrane and roof flashing materials.
Download Technical Data / Submittal Sheet (R1200-G)
