- R1220-R Series - Medium Sump Roof Drains with Integral 2" Water Dam
![Pin It](http://pinterest.com/pin/create/button/?url=https://maxsupply.com/r1220-r-series-medium-sump-roof-drains-with-integral-2-water-dam/&media=https://cdn10.bigcommerce.com/s-dh5771/products/3286/images/6257/R1220_R__78609.1429630420.1280.1280.jpg?c=2&description=Max Supply - R1220-R Series - Medium Sump Roof Drains with Integral 2" Water Dam, Call for Pricing (https://maxsupply.com/r1220-r-series-medium-sump-roof-drains-with-integral-2-water-dam/))
Product Description

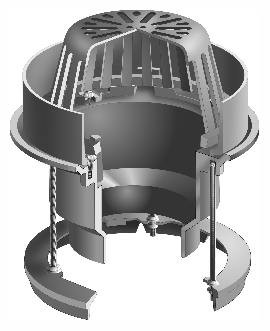

SPECIFICATION: MIFAB Series R1220-R lacquered cast iron medium sump roof drain with 12" diameter anchor flange, 2" high cast iron integral combined water dam and waterproofing membrane clamp ring, and standard self-locking cast iron dome strainer with a free area of 71.50 square inches.
FUNCTION: Used in flat roofs where a constant height of water is required. Also used as an emergency overflow, draining water when the depth of the water on the roof exceeds the water dam height. Large free area dome provides for efficient drainage of rainwater and prevents debris from entering the drain line. Extra wide anchor flange and membrane clamp provides for secure grip of membrane and roof flashing materials.
FUNCTION: Used in flat roofs where a constant height of water is required. Also used as an emergency overflow, draining water when the depth of the water on the roof exceeds the water dam height. Large free area dome provides for efficient drainage of rainwater and prevents debris from entering the drain line. Extra wide anchor flange and membrane clamp provides for secure grip of membrane and roof flashing materials.
Download Technical Data / Submittal Sheet (R1220-R)
